L5046001

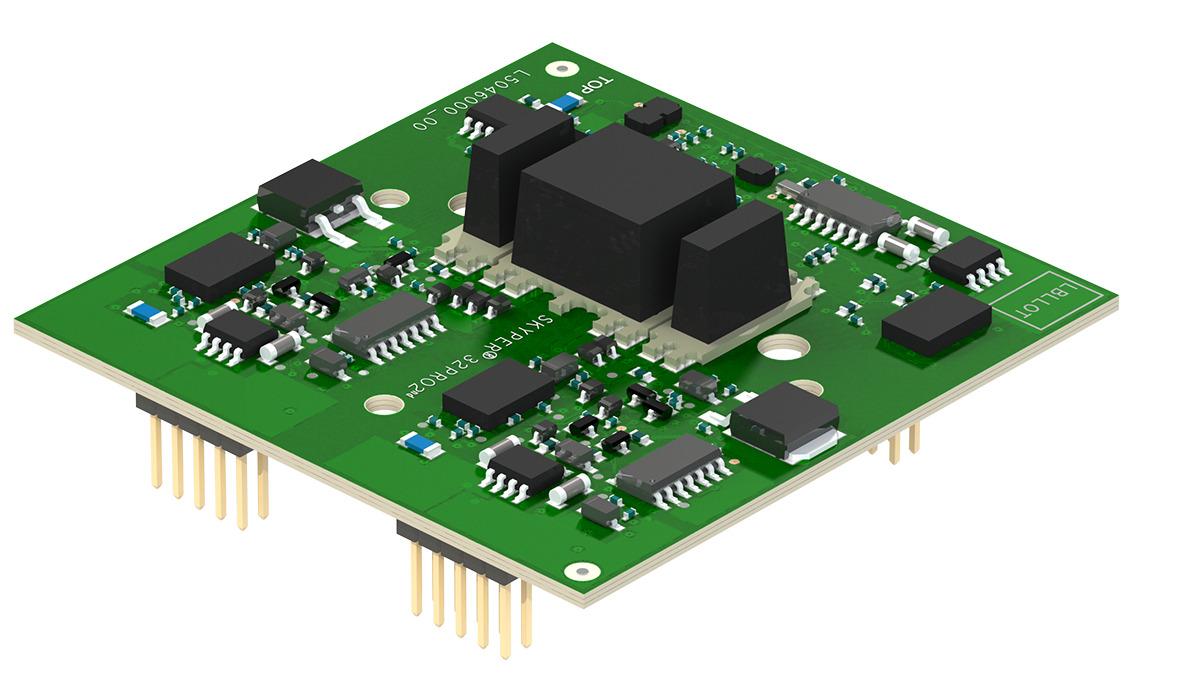

SKYPER32 PRO 2nd edition 12111
Driver Core
Product specifications
Characteristic | Value |
|---|---|
| Channels | 2 |
| Country of origin | Germany |
| Current (A) | 20 A |
| Features | Two output channelsIntegrated potential free power supplyUnder voltage protection prim/secDriver interlock top / bottomDynamic short circuit protectionHalt status with failure managementExternal failure input (sec.)Soft turn-offRoHS compliantUL approval in progressIEC 60068-1 (climate) 40/085/56, no condensation and no dripping water permitted, non-corrosive, climate class 3K3 acc. EN60721Coated with varnish |
| Housing | Driver Core |
| IOUT (AVG) (A) | 0.09 A |
| IOUT (PEAK) (A) | 20 A |
| Legacy part number | L5046001 |
| Product line | Driver Core |
| Product Status | In Production New |
| QG (µC) | 15 µC |
| Surge current (A) | 0.09 A |
| Topology | Half Bridge |
| Type | Driver Core |
| Typical applications | Driver for IGBT modules in bridge circuits in industrial application |
| VBlocking max (V) | 1700 V |
| Voltage (V) | 1700 V |
General specifications
Characteristic | Value |
|---|---|
| Gross weight | 0.04 Kilogram |
| Net weight | 0.028 Kilogram |
