24919791
SK45MAHT12SCp
SEMITOP 3 Press-Fit
Product specifications
Characteristic | Value |
|---|---|
| Chip technology | Gen 2 SiC MOSFET (RM) |
| Current (A) | 32 A |
| Dimensions (LxWxH) | 31x55x12 |
| Features | One screw mounting moduleFully compatible with other SEMITOP<sup>® </sup>Press-Fit typesImproved thermal performance by aluminum oxide substrateThree phase inverter topology with split outputUltra Low inductance designSiC 1200V Planar MOSFETSiC 1200V Schottky FWDExtremely fast switchingUL recognized, file no. E63532 |
| Housing | SEMITOP 3 Press-Fit |
| Legacy part number | 24919791 |
| Product Status | In Production New |
| Product line | SEMITOP |
| Technology | SiC MOSFET |

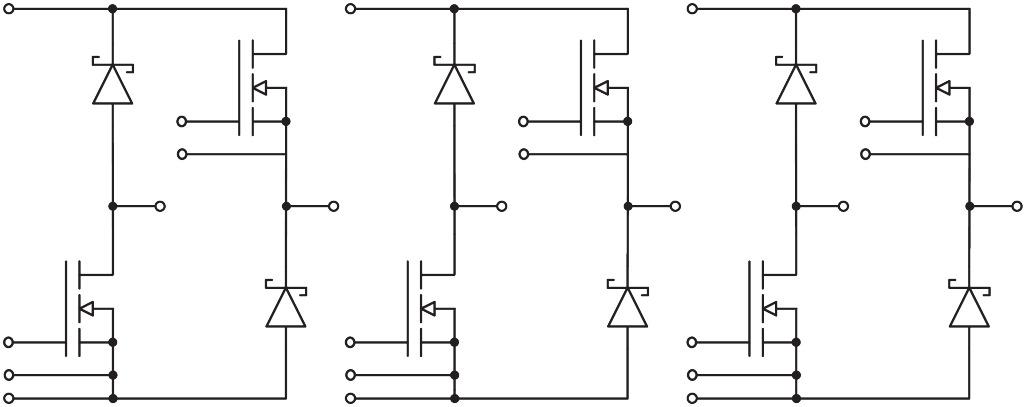

| Topology | Sixpack |
| Type | SEMITOP 3 Press-Fit |
| Typical applications | Solar inverterUPSPower Supply |
| Voltage (V) | 1200 V |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
